Solar Hybrid ACDC Pump Controller (1100-3000W) & Solar Swimming Pool Pump

1. Introduction

The Solar Hybrid AC/DC Pump Controller in the 1100W to 3000W range serves a wide spectrum of water circulation applications — from agricultural and domestic water supply to swimming pool filtration and sanitation systems. When paired with a solar swimming pool pump, this controller category enables pool operators to significantly reduce electricity consumption by running filtration cycles during daytime solar generation hours, supplemented by AC grid or generator power when solar input is insufficient.

Deye Group has manufactured submersible pumps, pool pumps, and pump controllers since 1990. Pool pump applications represent a distinct design domain within Deye's product range, requiring controllers that address both the hydraulic demands of pool circulation and the variable nature of solar power input.

2. Core Concepts

2.1 Solar Hybrid AC/DC Pump Controller

A solar hybrid AC/DC pump controller accepts both DC input from photovoltaic panels and AC input from the utility grid or a generator. An internal switching mechanism prioritizes solar power when available and transitions to AC when solar irradiance falls below the minimum operating threshold. Key internal subsystems include:

• MPPT (Maximum Power Point Tracking): Continuously tracks and locks onto the maximum power output point of the connected PV array, adapting in real time to irradiance and temperature changes.
• Variable Frequency Drive (VFD): Regulates motor speed by varying output frequency, enabling proportional flow control and soft-start capability.
• AC/DC Source Switching Logic: Monitors DC bus conditions and automatically transfers to AC input without operator intervention.
• Multi-layer Protection Circuits: Covers motor, power semiconductors, and both input sources.

2.2 Solar Swimming Pool Pump

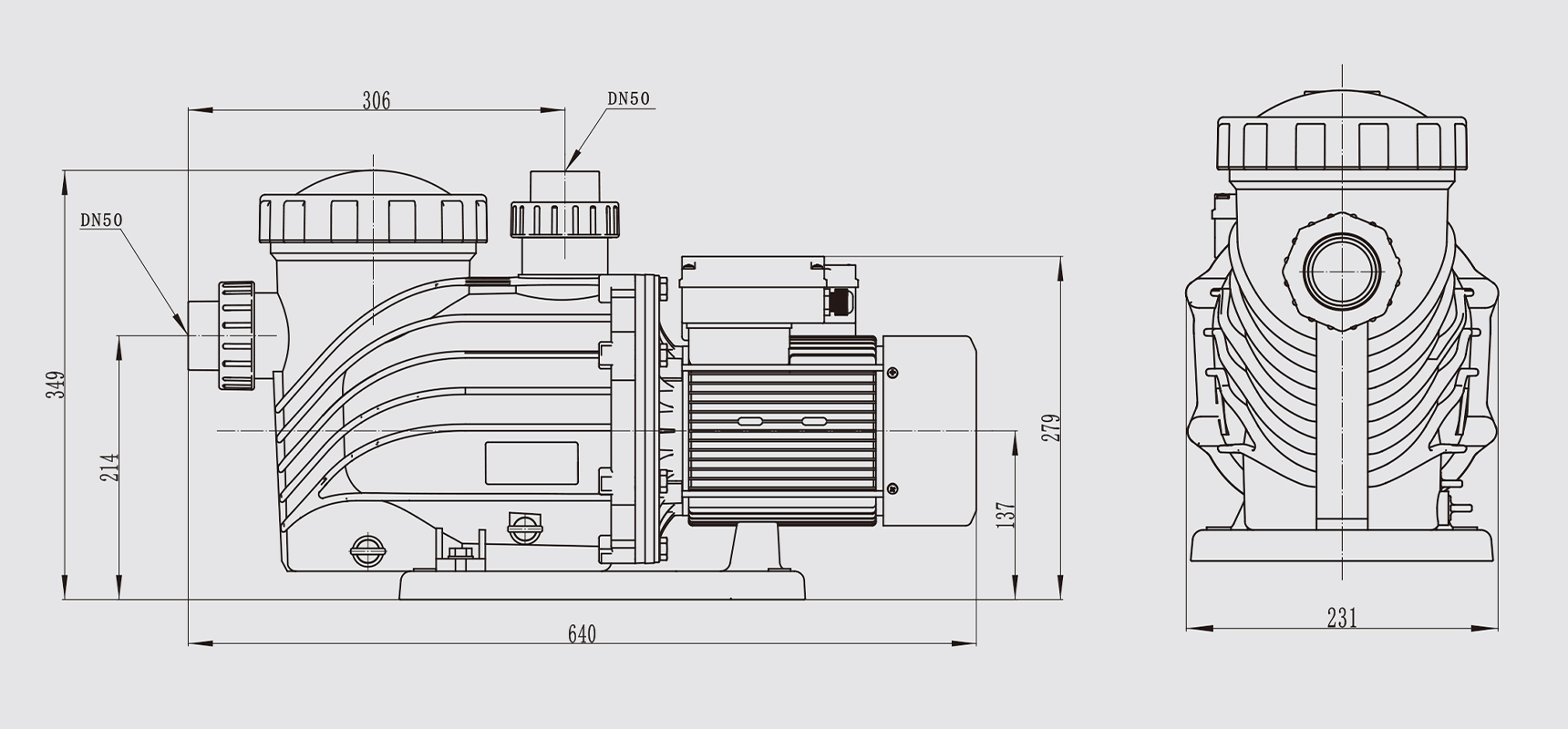

A solar swimming pool pump is a centrifugal surface pump specifically designed for pool water circulation, filtration, and heating system integration, powered by photovoltaic energy through a compatible controller. Unlike submersible borehole pumps, pool pumps are above-ground self-priming centrifugal pumps with a wet-end (pump head) and dry motor, connected via a sealed shaft. Key design requirements include compatibility with pool chemical environments, low-noise operation, and the ability to function across a variable speed range imposed by the solar controller.

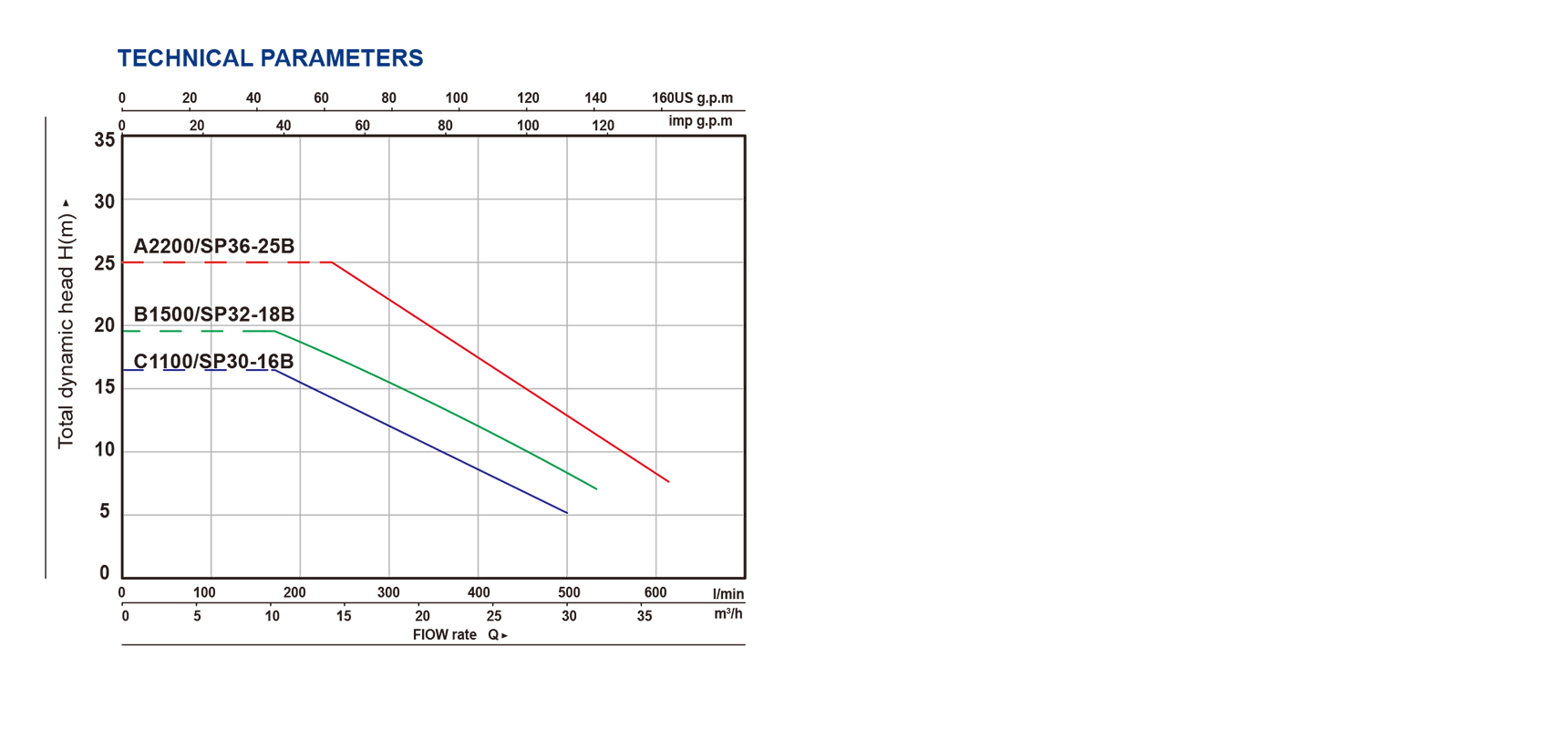

3. Typical Technical Specifications

4. Controller Type Comparison for Pool Applications

5. Solar Pool Pump vs. Standard Fixed-speed Pool Pump

6. Application Fields

• Residential Swimming Pool Filtration: Solar-powered circulation through sand filters or cartridge filters during daylight hours, supplemented by AC power in early morning or evening as required by filtration schedules.
• Commercial and Hotel Pool Systems: Continuous filtration with AC backup ensuring hygiene standards are maintained regardless of weather conditions.
• Solar Pool Heating Circulation: Driving water through roof-mounted solar thermal collectors for passive pool heating, aligned with peak solar generation periods.
• Water Feature Circulation: Fountains, ornamental ponds, and water features in parks or commercial properties where low-noise variable-speed operation is preferred.
• Agricultural Irrigation (1100–3000W range): Driving surface centrifugal pumps for drip or sprinkler irrigation from open water sources such as ponds, canals, or rivers.
• Aquaculture Water Circulation: Aeration and circulation pumping in fish ponds and aquaculture facilities during daylight operating cycles.

7. Protection and Control Functions

8. Pool System Sizing Considerations

• Pool Volume and Turnover Rate: The pump must circulate the entire pool volume at least once per day (residential) or more frequently for commercial pools. Turnover rate determines minimum required flow rate in m3/h.
• System Head Calculation: Total hydraulic resistance including filter pressure drop, pipe friction, and fitting losses determines the required pump head at the design flow rate.
• PV Array Sizing: PV array peak power should be approximately 1.2 to 1.5 times the pump controller rated power. For a 2200W controller driving a pool pump, this equates to approximately 2640Wp to 3300Wp of installed PV capacity.
• Filtration Hours per Day: In solar-only or solar-priority mode, effective filtration hours are limited to peak solar generation windows (typically 5–8 hours). AC backup extends this to the required daily filtration duration.
• Chemical Compatibility: Pool pump wet-end materials (impeller, diffuser, casing) must be rated for continuous contact with chlorinated or saline pool water. Standard materials include glass-filled polypropylene and noryl composites.

9. Frequently Asked Questions

Q1: Can the hybrid AC/DC controller run a pool pump at night?

Yes. The AC input function of the hybrid controller allows the pool pump to operate from grid or generator power during nighttime or low-irradiance periods. The controller transitions automatically from solar to AC input when PV voltage falls below the configured threshold, maintaining continuous filtration without manual switching.

Q2: Will reduced pump speed during low irradiance affect pool water quality?

Pool water quality depends on total daily filtration volume, not instantaneous flow rate. Reduced speed during partial irradiance still contributes to cumulative daily turnover. Where AC backup is enabled, the controller compensates by running at full speed during AC operation periods, ensuring the total required filtration volume is achieved within the day.

Q3: What is the recommended PV panel count for a 1500W pool pump controller?

Applying the 1.2 to 1.5 oversizing factor, a 1500W controller requires approximately 1800Wp to 2250Wp of PV capacity. Using 400W monocrystalline panels, this translates to 5 to 6 panels. String configuration must be verified against the controller MPPT voltage window and maximum DC input voltage.

Q4: Can the same controller drive both a pool pump and an irrigation pump?

A single controller output is designed to drive one motor at a time. Switching between a pool pump and an irrigation pump requires either separate controllers per pump or an external contactor arrangement with appropriate interlocking. Connecting two motors simultaneously to one controller output is not a supported configuration.

Q5: Does Deye Group manufacture both the pool pump and the compatible controller?

Yes. Deye Group manufactures pool pumps, submersible pumps, and pump controllers across multiple power ratings. Matched pool pump and hybrid AC/DC controller packages are available, with motor electrical parameters verified against controller output specifications during the manufacturing process.
