Auto-switch AC/DC Pump Controller Specifications (1100-3000W)

Control Chip Intelligent Protection on Motor Drive Permanent Magnet Synchronous Motor Wide Voltage lnput Solar Power Input
Solar MPPT Real-Time Data Model Error Code Memory Smart 7/24 Timer Liquid Crystal Display
  • Product Details
  • Drawing
Controller Model Pump Power
(W)
DC Voltage Input Range (V) Maximum DC Input Current (A) AC Voltage Input Range
(V)
Maximum AC Input Current
(A)
Maximum Power Input
(W)
Optimum Input Voltage (V) Operation Mode IP Rating Operating Temperature
Range (℃)
Net Weight (kg)
[Auto-switch]
DY-(X)3600AC/DC
800 80-430 20 136-264 24 1200 90-400 AC/DC
Switching
IP65 -15~60 2.6
1100 1700 130-400
1500 2050 160-400
2200 2850 220-400
3000 3000 280-400

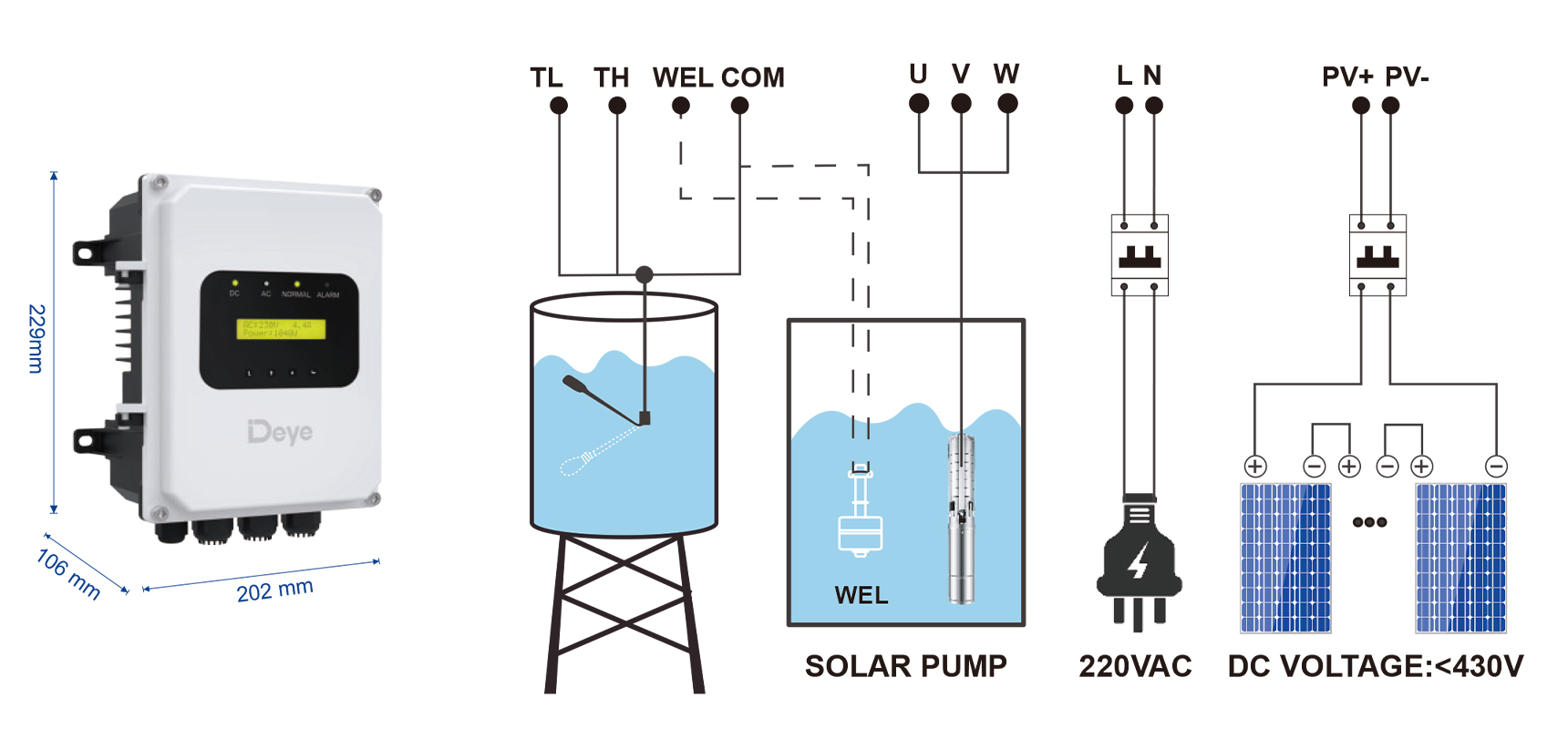

Auto-switch AC/DC Controller and Pump Wiring Diagram
