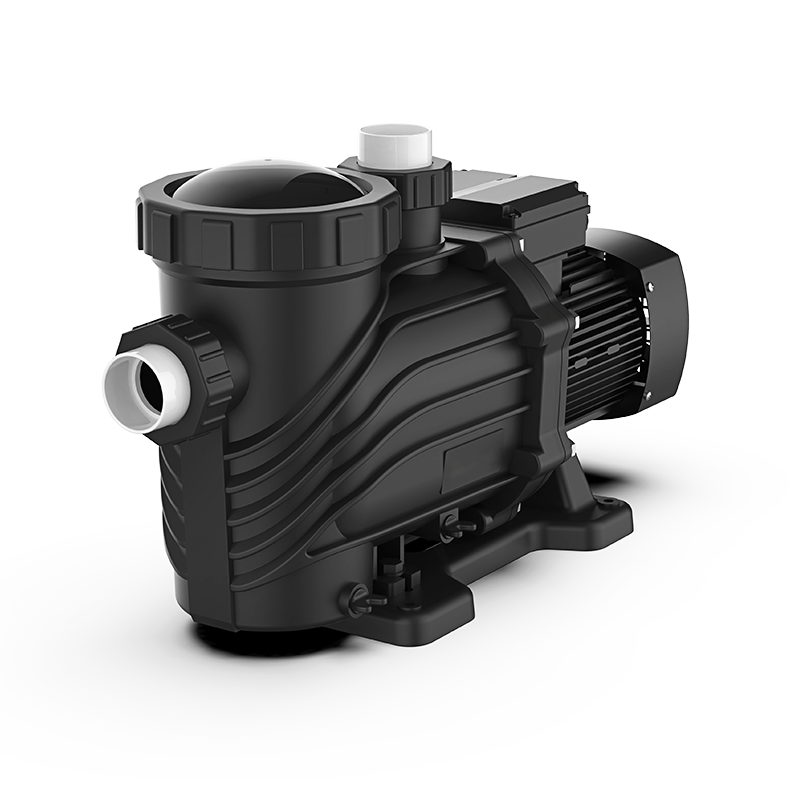

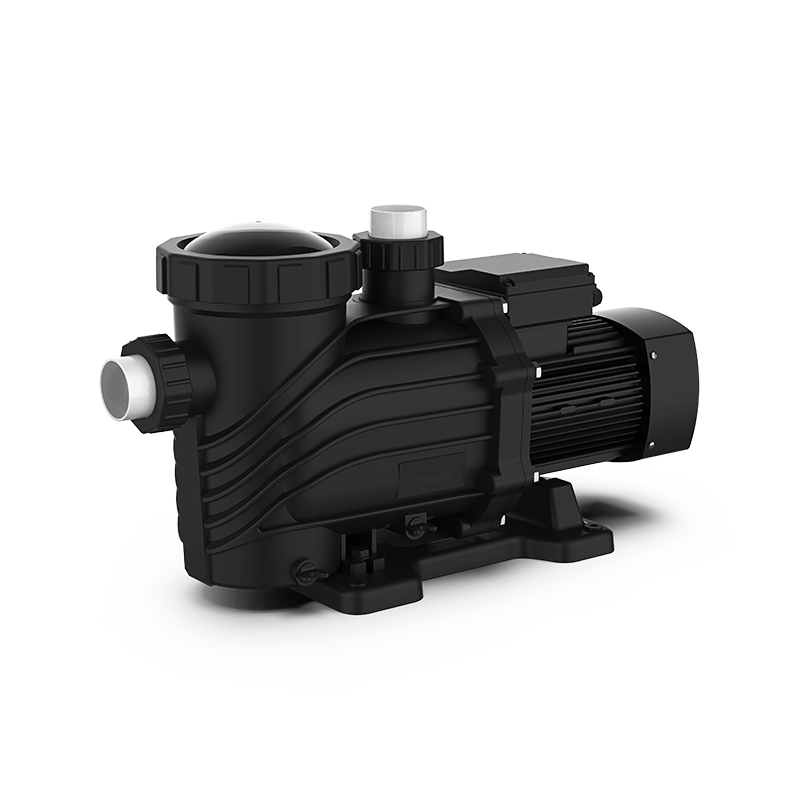

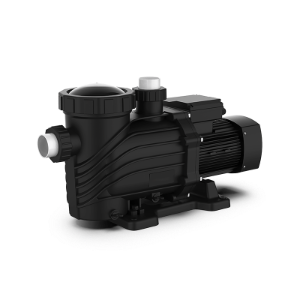

DN50 2200W 3HP Max Flow 36 m³ Per Hour / 36 tons Per Hour Max Head 25M Solar Swimming Pool Pump With Hybrid ACDC Pump Controller

Brand	Deye
Model	A2200 SP36-25B
Type	2 Inch ACDC Hybrid Power Input Solar Swimming Pool Pump
Application	Deye Solar swimming pool pump is a high-efficiency solution for residential and commercial pools, including spas. It is compatible with most existing pool filtration systems and can effectively handle circulation and water purification tasks. Deye Solar swimming pool pump powered by solar panels and grid together ensures the system stable power output, priority use of solar energy helping reduce long-term energy expenses. Compared to traditional electric pumps, a solar-powered system significantly lowers energy consumption and minimizes carbon emissions, making it an eco-friendly choice for modern pool systems.
Package Type	Wooden Case + Carton
Warranty	1 Year
Certificate
Power (W)	1100W    1500W 2200W
Voltage(V)	AC:136-264V DC: 80-410V
Max flow(m³)	36
Max head(m)	25
Outlet(inch)	2''
What we get for you: (Package Include)

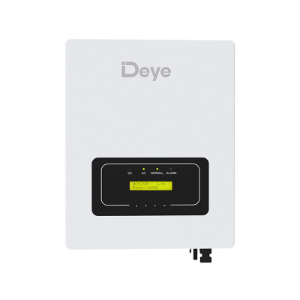

	1 x 2'' ACDC solar swimming pool pump	1 x Pump controller with MPPT function

What You need to get by yourself (Package DO NOT Include):
1. Suitable solar panels. There are some suggestions in the instruction book.
2. A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.
3. Poly pipe from pump to water tank. ( recommend 1inch or over diameter poly pipe)
4. Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

Core Advantages Of Deye Submersible Pump
1. Mechanical Seal: S silicon carbide + 316SS + fluorine rubber (supper wear-resistant)
2. Bearing: (BUT) 2RS1 bearings made in the UK, with double rubber seals that provide excellent protection against water and dust—greatly extending the pump’s service life. Even under heav load and continuous operation, it delivers stable performance with minimal maintenance, making it a reliable and energy-efficient solution for home pool systems.
3. Shaft: 316SS food grade Stainless steel + 40Cr tempered steel
4. Motor Material:  Equipped with a 50ww600 high-efficiency cooling motor for enhanced durability and corrosion resistance.
5. Motor Structure: Front and rear double skeleton sealing structure
6. Pump Body Material: PA material (high temperature resistant)
7. Junction Box: Junction box made of flame-retardant aluminum alloy, offering excellent fire resistance, corrosion protection, and heat dissipation. It effectively safeguards internal circuits, ensures safe and stable operation in harsh conditions, and is ideal for outdoor pools and solar-powered systems.
8. Filter Housing:  Large-capacity filter housing supports high water flow. Reinforced filter basket ensures smooth flow even when full of debris.
9. Pre-Filter Lid:  Transparent pre-filter lid allows for easy inspection and cleaning.
10. Protection Class: IP55
11. Insulation Class: F
12. Medium temperature: ≤75℃

TIP:

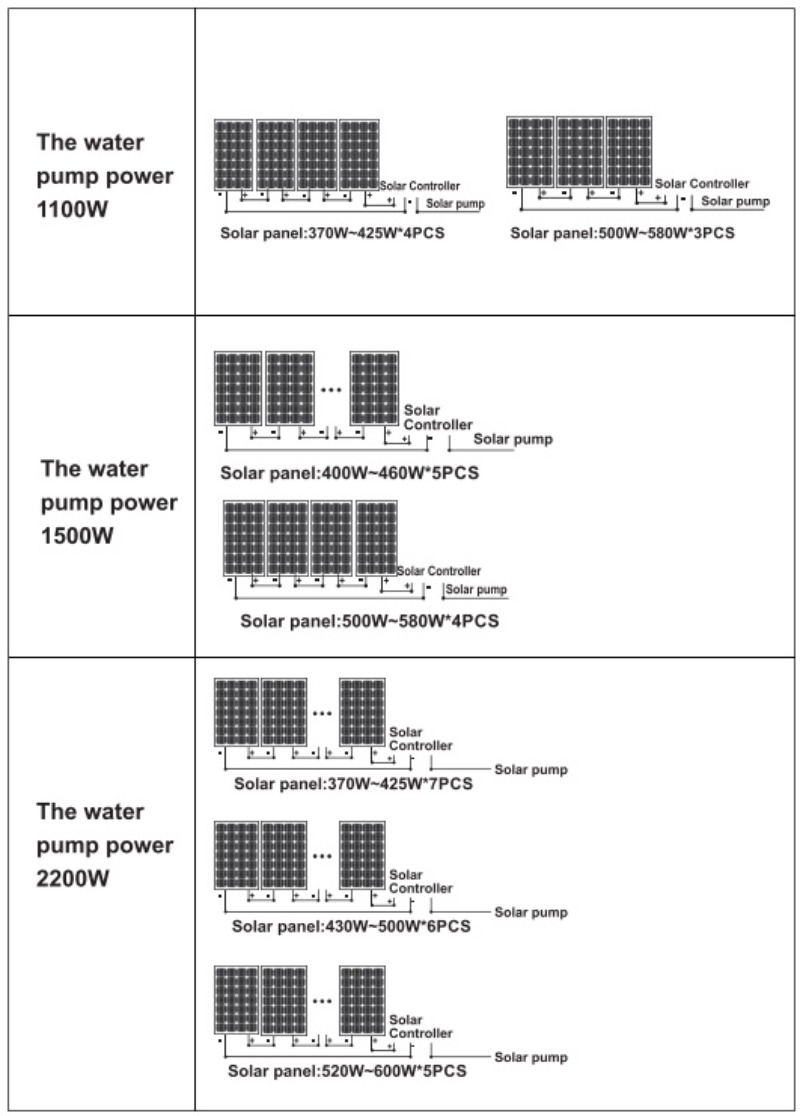

When the solar panels are connected in series, the voltage is added, but the total current will not change; when the connection is in parallel, the voltage remains the same and the current is added.
Before connecting the control box, please make sure to measure the open circuit voltage of the solar panel with professional instruments, or use the knowledge of series-parallel connection to calculate the
open circuit voltage of the solar panel according to the actual solar panel parameters. The open circuit voltage of the solar panel connection group must be less than the maximum input voltage of the control box, otherwise it will cause irreversible damage to the product.

Solar Swimming Pool Pump Questions and Answers

What's the Solar Swimming Pool Pump benefits compare with  diesel or electric Swimming Pool Pump ?

After evaluating the long-term operation and maintenance costs of swimming pool pumps, it is clearly evident that using solar-powered swimming pool pumps can demonstrate more significant long-term economic benefits, significantly reducing traditional energy consumption, electricity bills, and daily maintenance costs.
