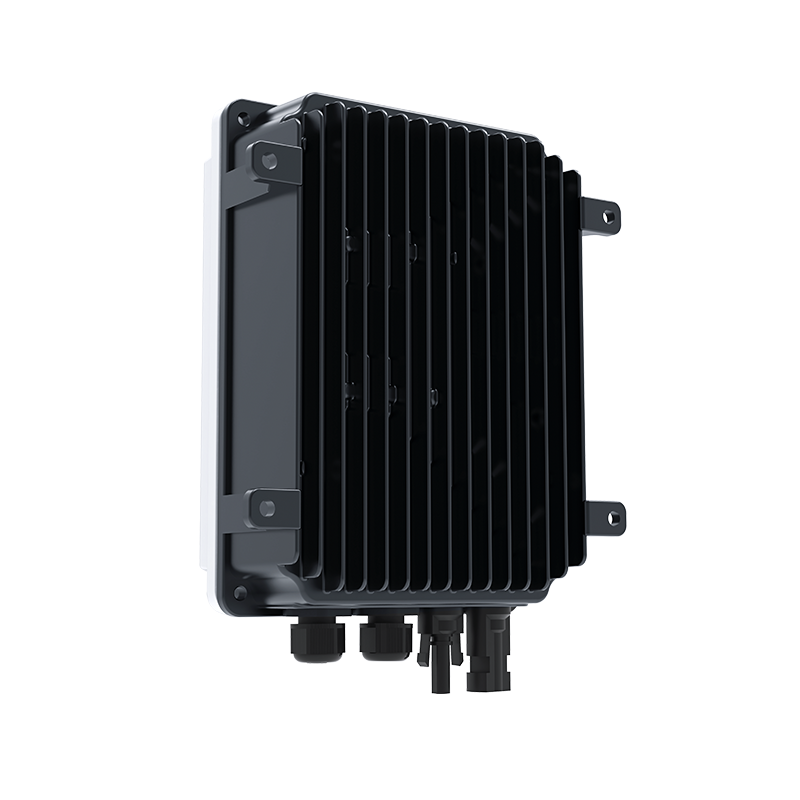

DC Solar Water Pump Controller

Core Advantages Of Deye Solar Pump Controller
1. Waterproof grade: IP65
2. Ambient temperature: -15℃~60℃
3. Working environment humidity: 30% -90%
4.Maximum input current: 18A
5. Liquid Crystal Display(LCD):
displays the power, voltage, current, speed and other working condition,enhanced user convenience and experience.
6. Permanent Magnet Synchronous Motor:
Position-free on field-oriented control
7. Efficient Energy Management:
Including MPPT technology to maximize solar energy usage and minimize energy waster.
8. Intelligent Protection On Motor Drive :
Adopts innovative intelligent protection technology to ensure the motor never burn, and providing higher operatinal safety.
9. Comprehensive Protections:
Includes protection of over-voltage, under-voltage, over-current, phase loss, water shortage,short circuit, high temperature...
10. Error Code Memory:
Error reporting, storing fault code history, simplifying troubleshooting.

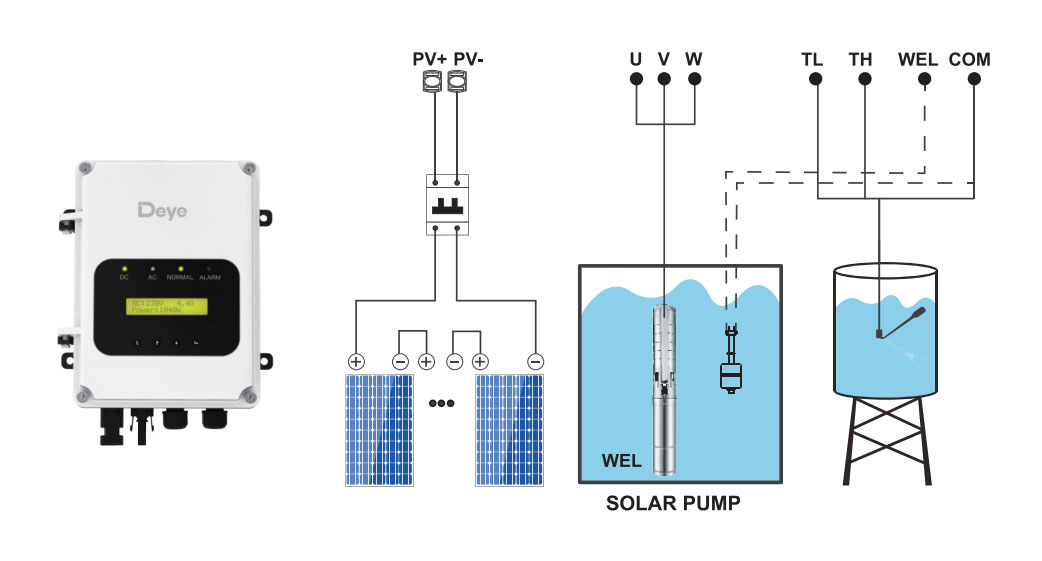

Controller Internal Wiring Diagram

Solar Submersible Pump Controller Questions and Answers

1. How to operate Deye Solar Water Pump Controller?

Deye solar water pump controller is highly automated and intelligent. It has automatic switch function and Solar MPPT technology capable of adjusting its working status according to changes in solar radiation intensity, automatically starting at sunrise and shutting down or switch to AC at sunset or solar power insufficient. And Deye solar water pump controller ACDC hybrid model, especially with ultra-low power solar utilization function, operates efficiently even with solar power as low as 1W, eliminating resource waste and maximizing the value of every watt of solar energy.

Compared with LED screens, Deye solar water pump controller LCD screens providea  more complete display of data and parameters, and more convenient to operate.

Deye Solar water pump controller with well water shortage protection, water tank full protection, over current/voltage protection etc enables the Solar water pump system with no need for manual supervision, greatly reducing maintenance costs.
